Gen 6 Enhanced Optic Plate
Installation Instructions
DCA precision-machined adapter plates for Glock Gen 6 slides. Select your optic footprint below to jump directly to your installation steps.
Tools Required
- Tx 10 bit or driver
- Optic mounting screws (included with your optic or plate)
- Medium-strength thread locker
- Torque wrench or driver (recommended)
- Clean, lint-free cloth

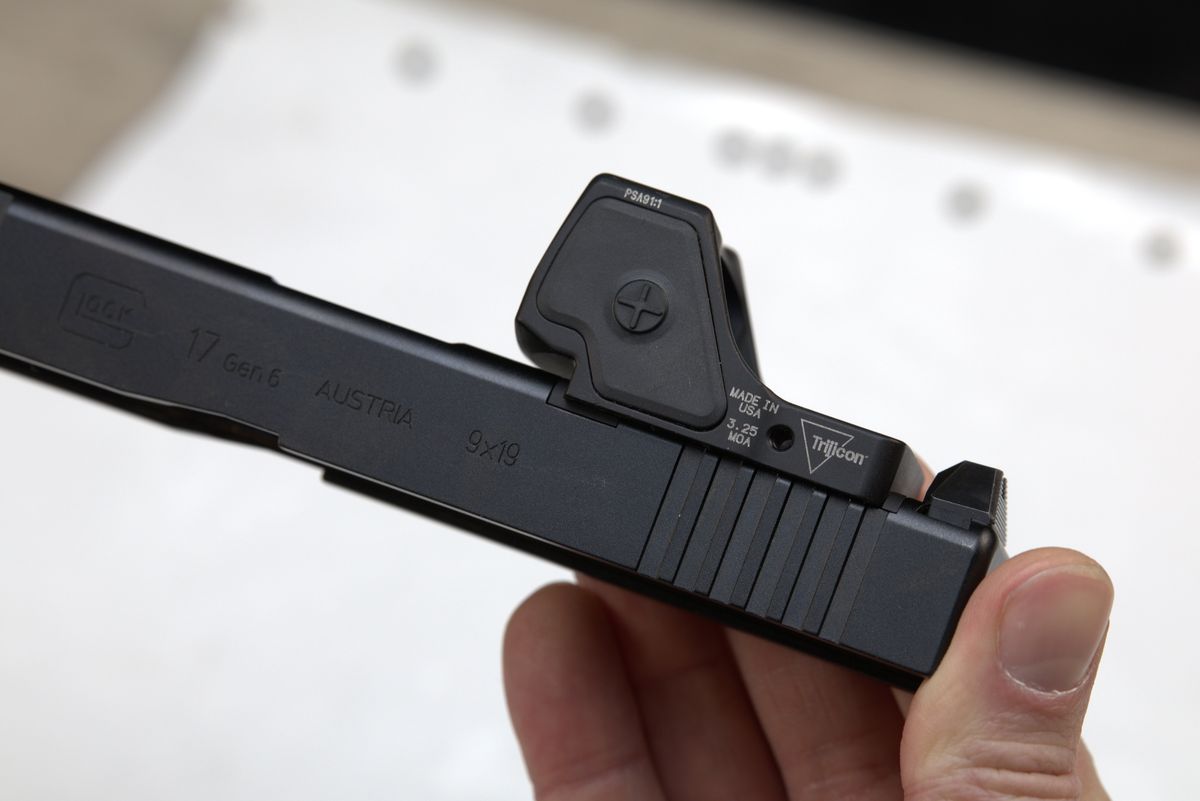

RMR / RMSc Universal / DPP / DPPV
For optics using the RMR, RMSc Universal, DeltaPoint Pro, or DeltaPoint Pro V footprint.
Attach Optic to Plate

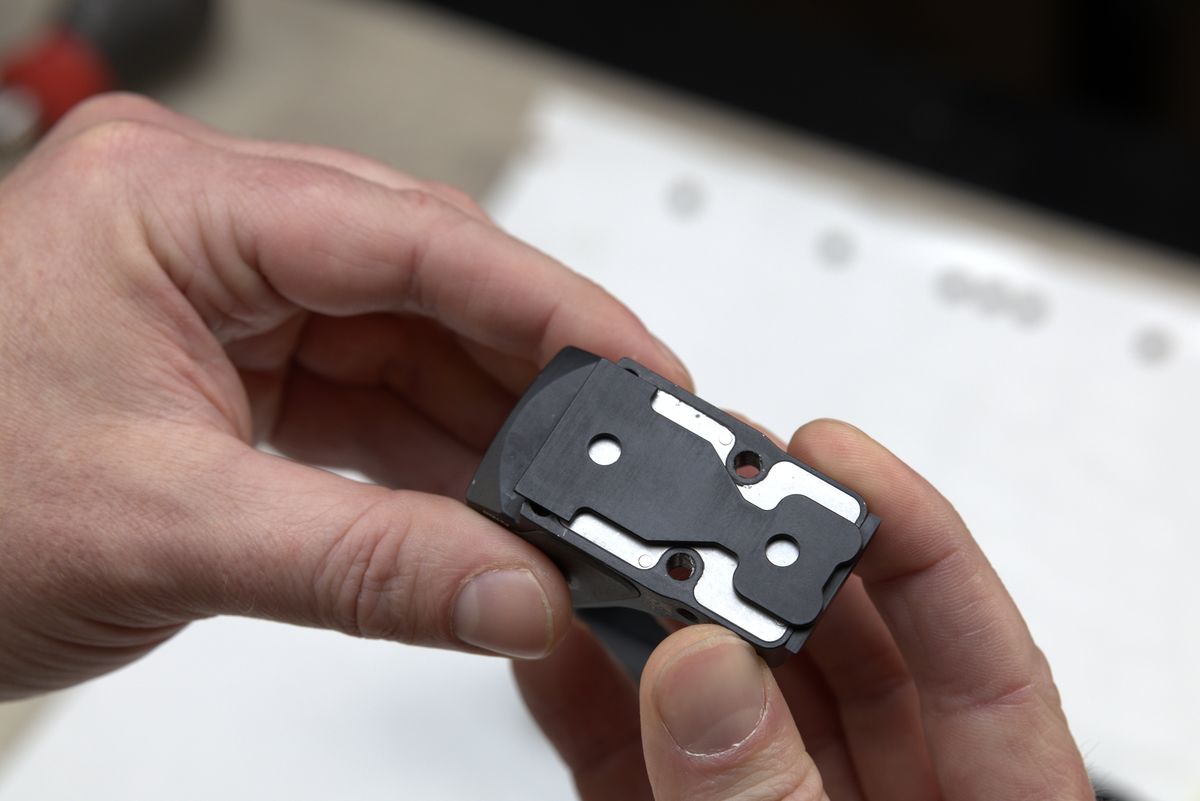

Our plates are designed for a tight fit and may require you to flex the plate slightly to install the optic onto the plate.
If using an RMR, we recommend using a sealing plate.
Attach Optic/Plate Assembly to Slide

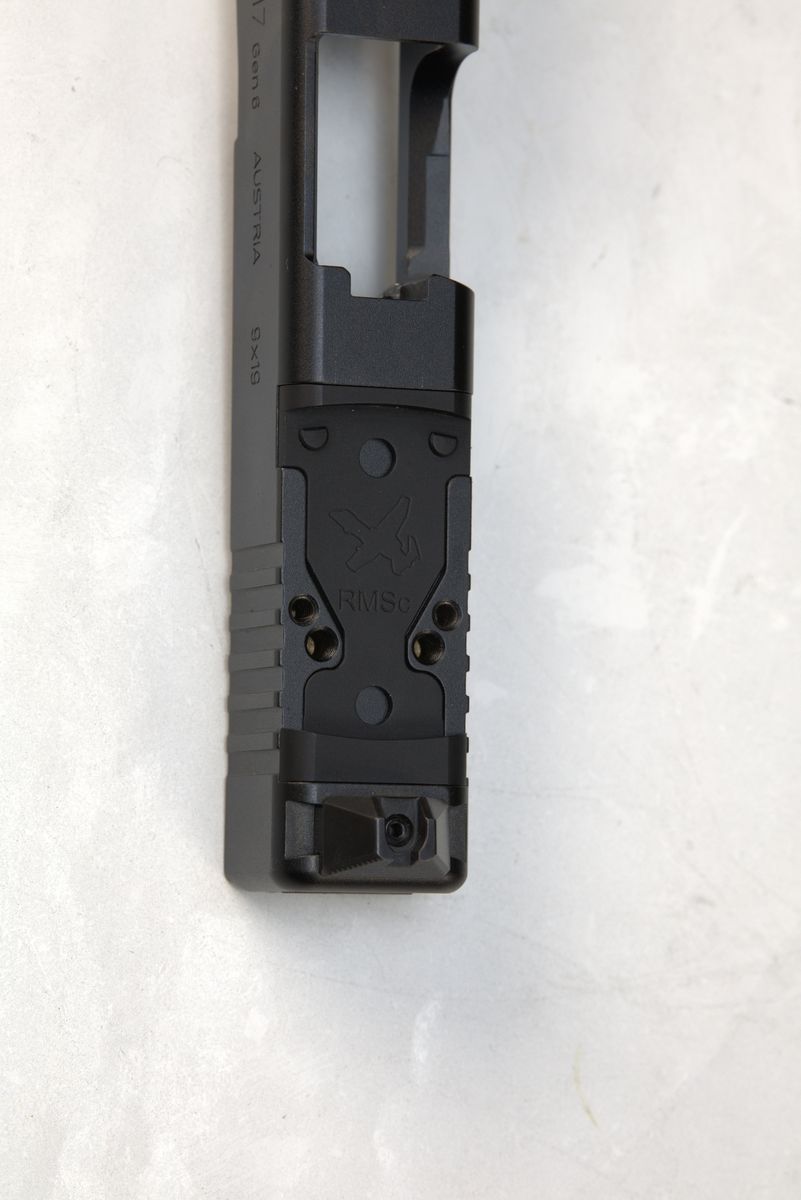

Seat the optic and plate assembly into the optic cut on your slide. Align the screw holes in the plate with the threaded holes in the slide.

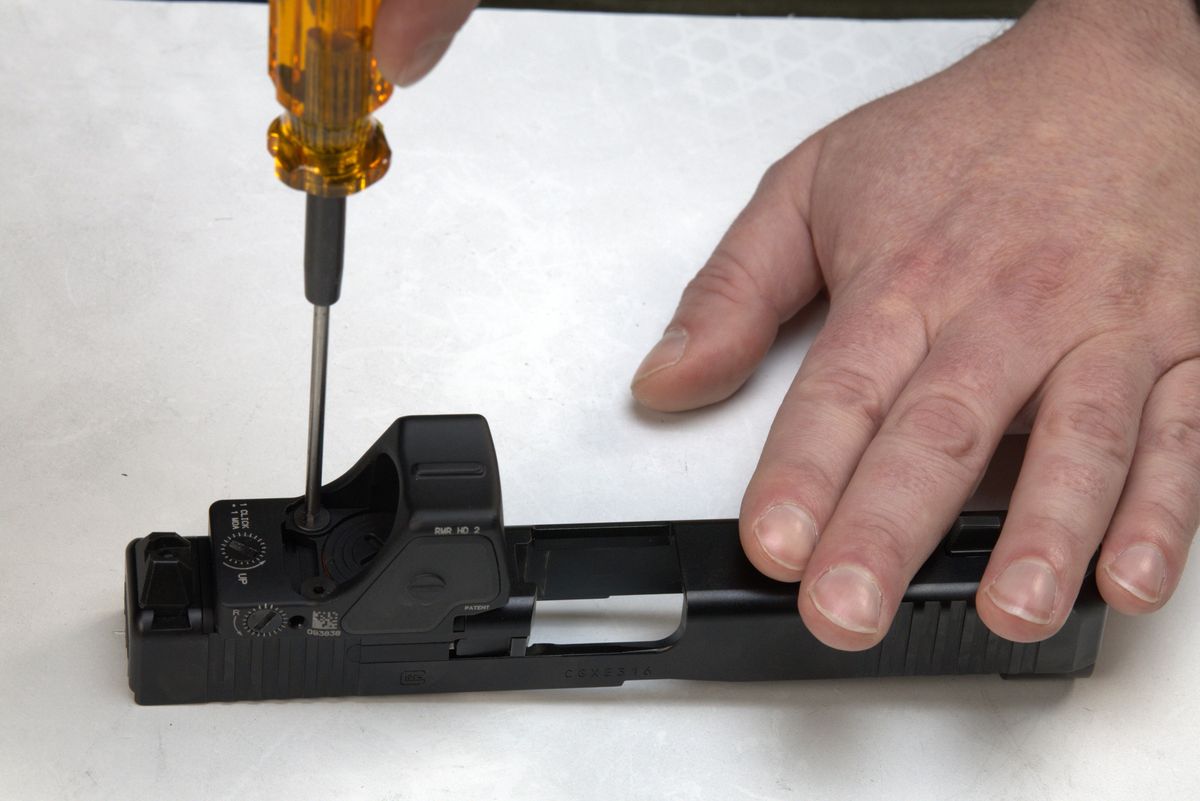

Install Screws
Install the screws provided with your optic (6-32 or M4x0.7). Apply a small dab of medium-strength thread locker to each screw before installation. Use a Tx 10 driver and tighten in an alternating pattern.
- 6-32 screws: Torque to 12 inch-lbs
- M4x0.7 screws: Torque to 15 inch-lbs
Acro / 509T / MPS
For optics using the Aimpoint Acro, Holosun 509T, or Steiner MPS footprint.
Unlike the RMR/RMSc/DPP footprints above, Acro/509T/MPS optics require you to install the plate to the slide first, then mount the optic afterward.

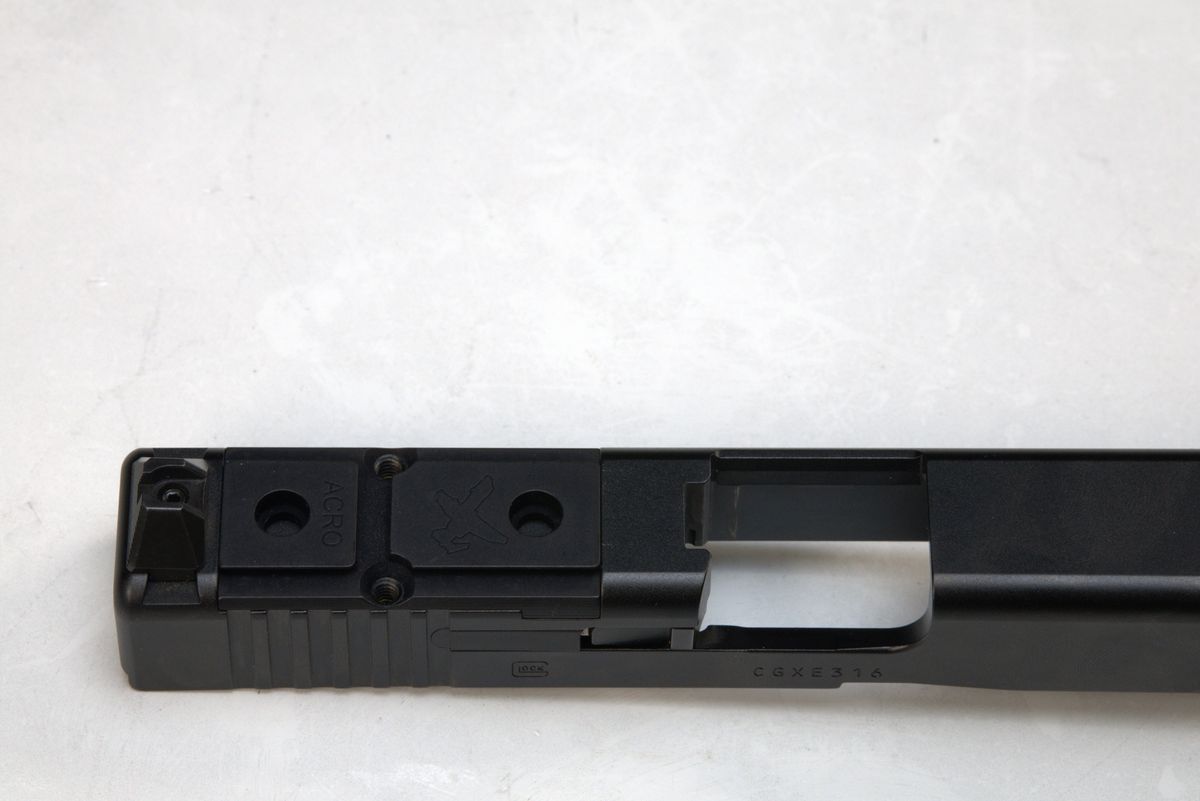

Attach Plate to Slide
Seat the optic plate into the optic cut on your slide. Align the screw holes in the plate with the threaded holes in the slide.

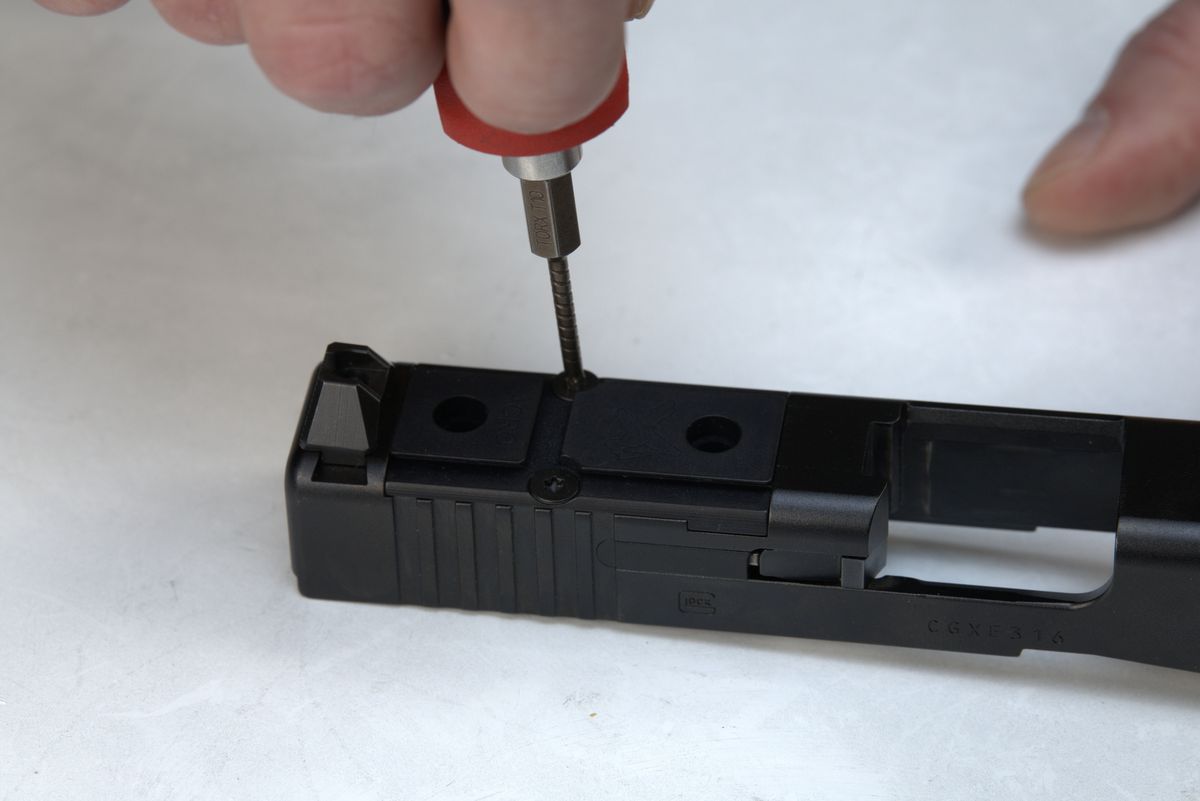

Secure the Plate
Apply a small amount of medium-strength thread locker to the supplied screws and torque to 12–15 inch-lbs.

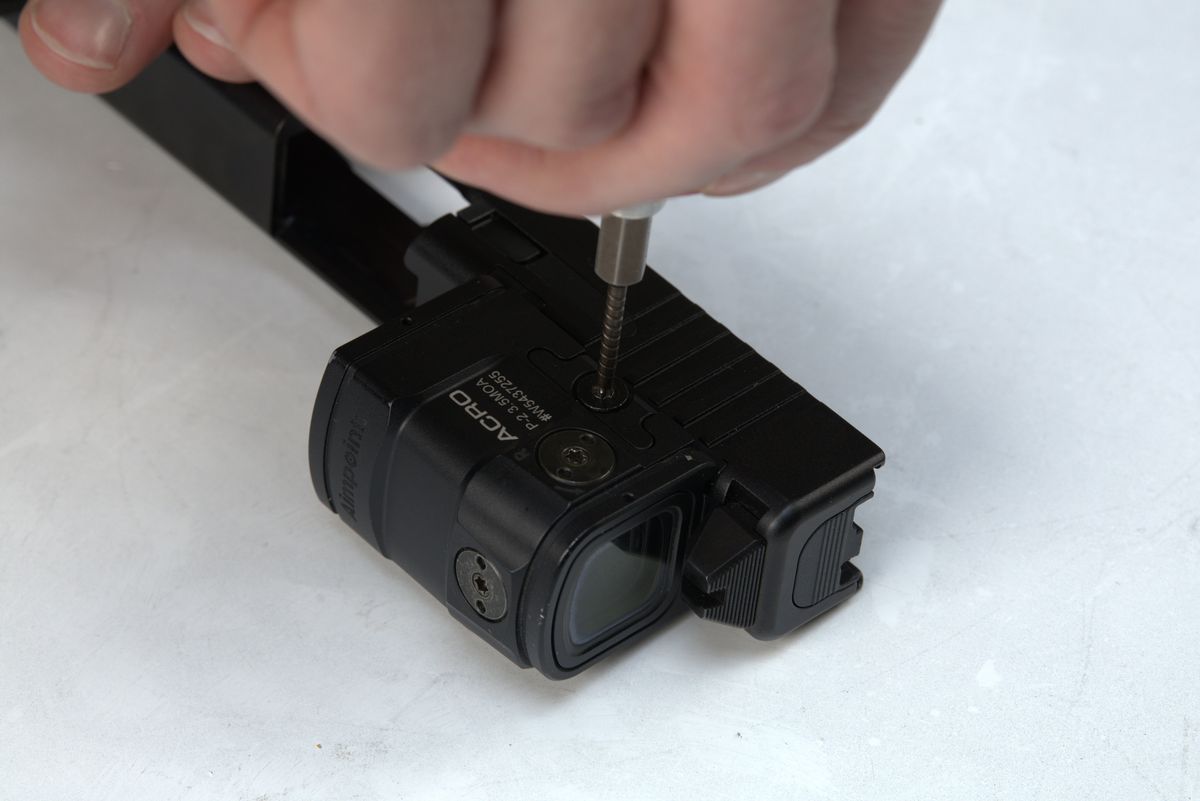

Attach Optic to Plate
Attach your optic to the plate and torque to the optic manufacturer's recommended torque specifications.
Torque Quick Reference
| Footprint | Screw Type | Torque Spec | Driver |
|---|---|---|---|
| RMR / RMSc / DPP / DPPV | 6-32 | 12 in-lbs | Tx 10 |
| RMR / RMSc / DPP / DPPV | M4x0.7 | 15 in-lbs | Tx 10 |
| Acro / 509T / MPS | Supplied | 12–15 in-lbs | Tx 10 |
| Optic to Plate (all) | Per manufacturer | Per manufacturer spec | Per manufacturer |
Optic manufacturers often produce optics with varying tolerances. While we design our plates to be compatible with as many optics as possible, there may occasionally be compatibility issues. If you have any difficulty installing your plate, please contact us and we will do our best to assist you.
